Pan Depth: 5"
Pan Capacity: 9 Quarts (8.52 Liters)
System Capacity: 10 Quarts (9.46Liters)

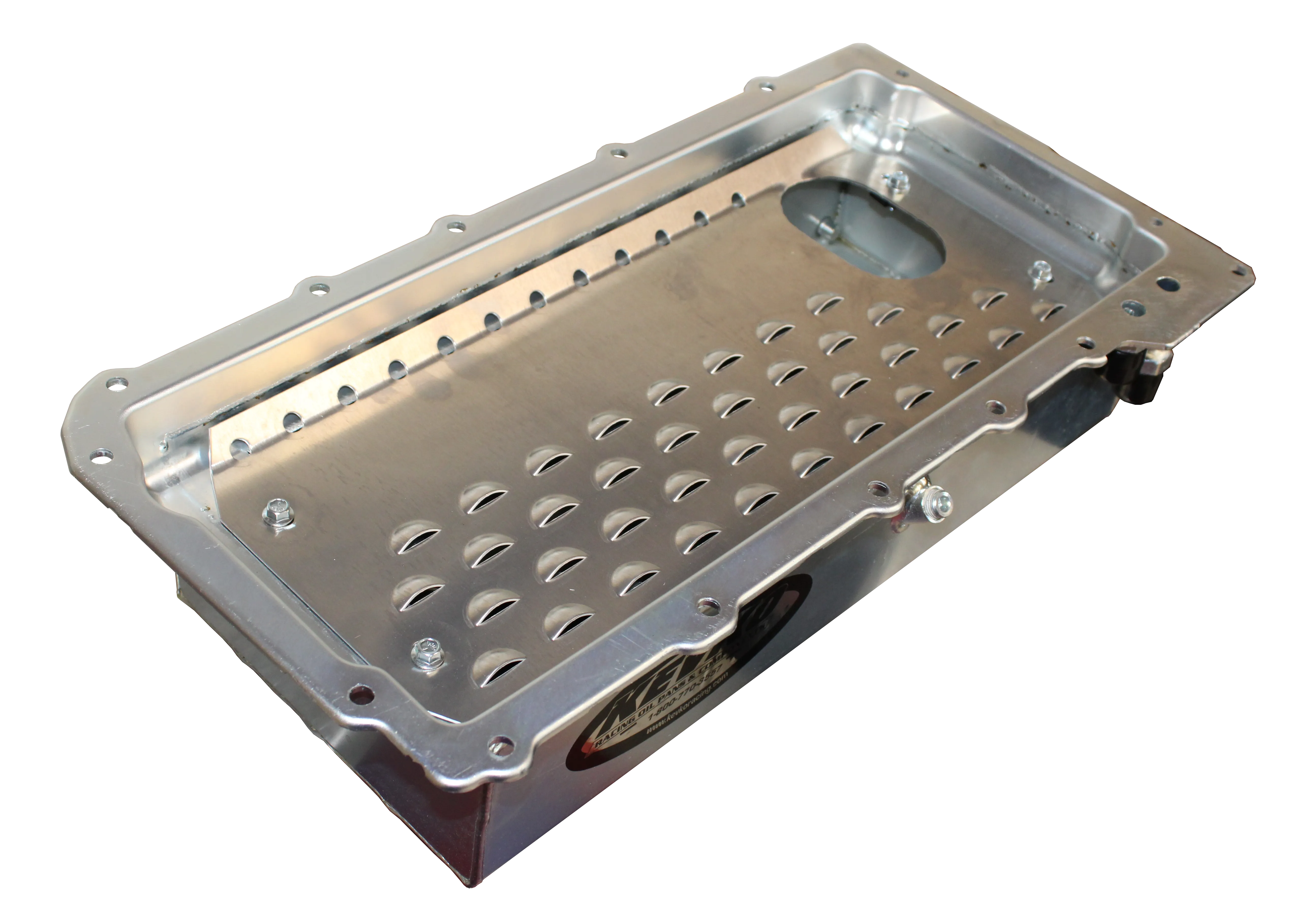

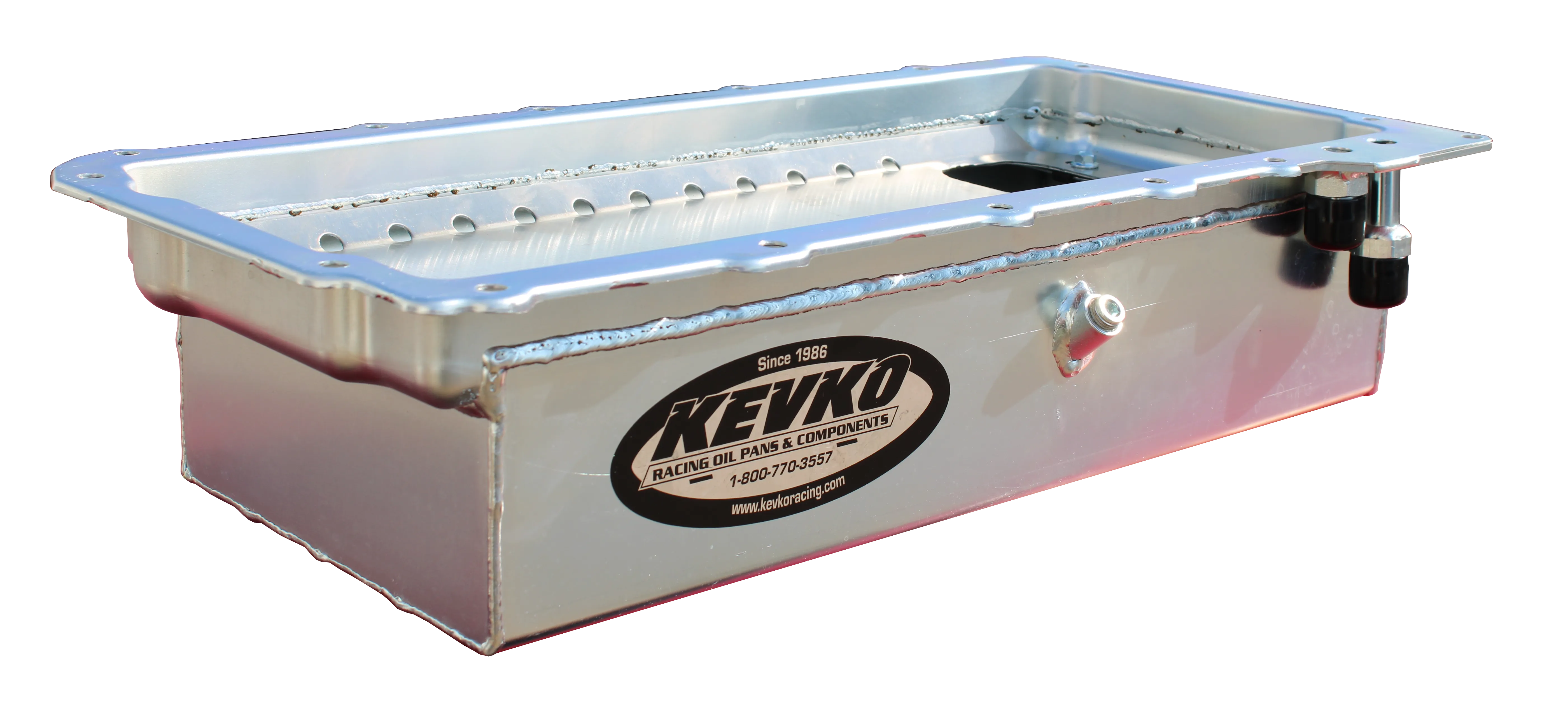

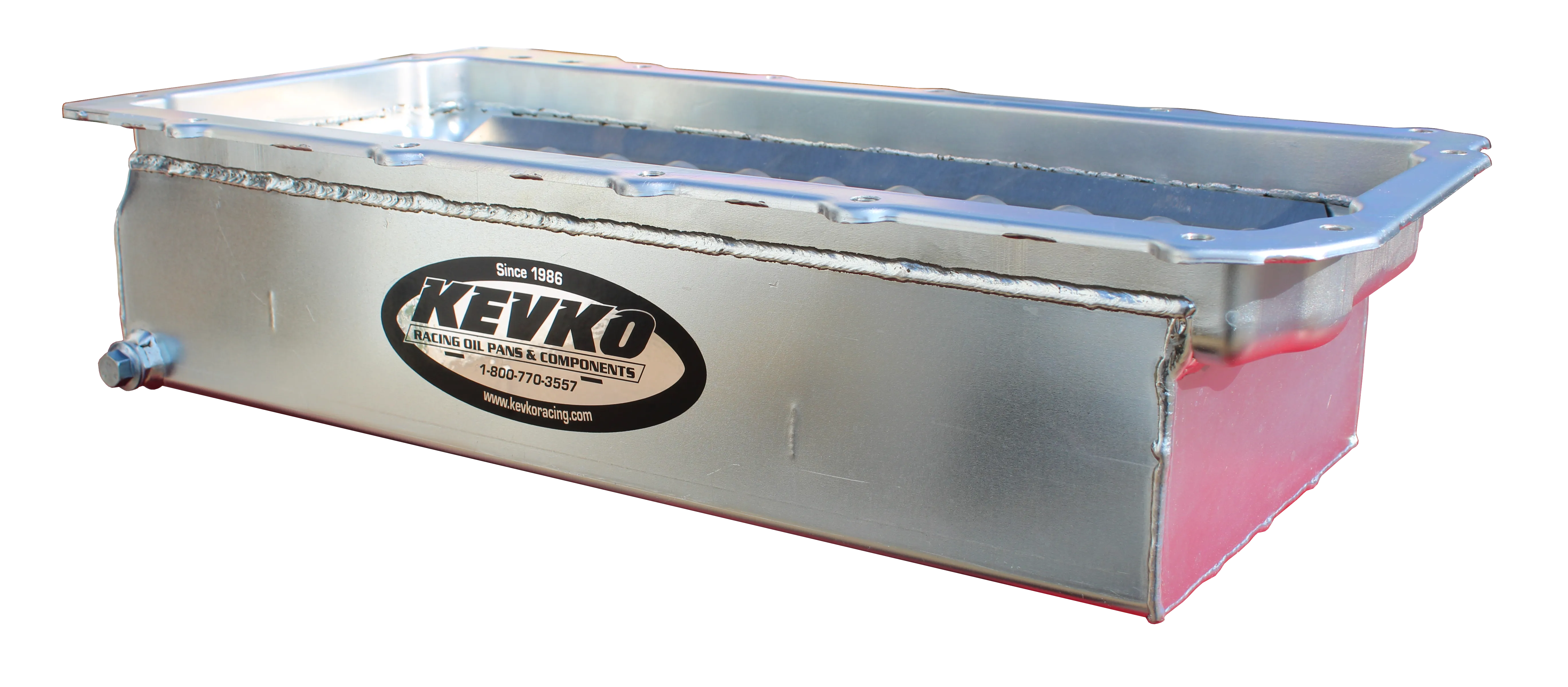

Description: 19.5" Long, 8-3/8" Wide, 5" Deep Rear Sump

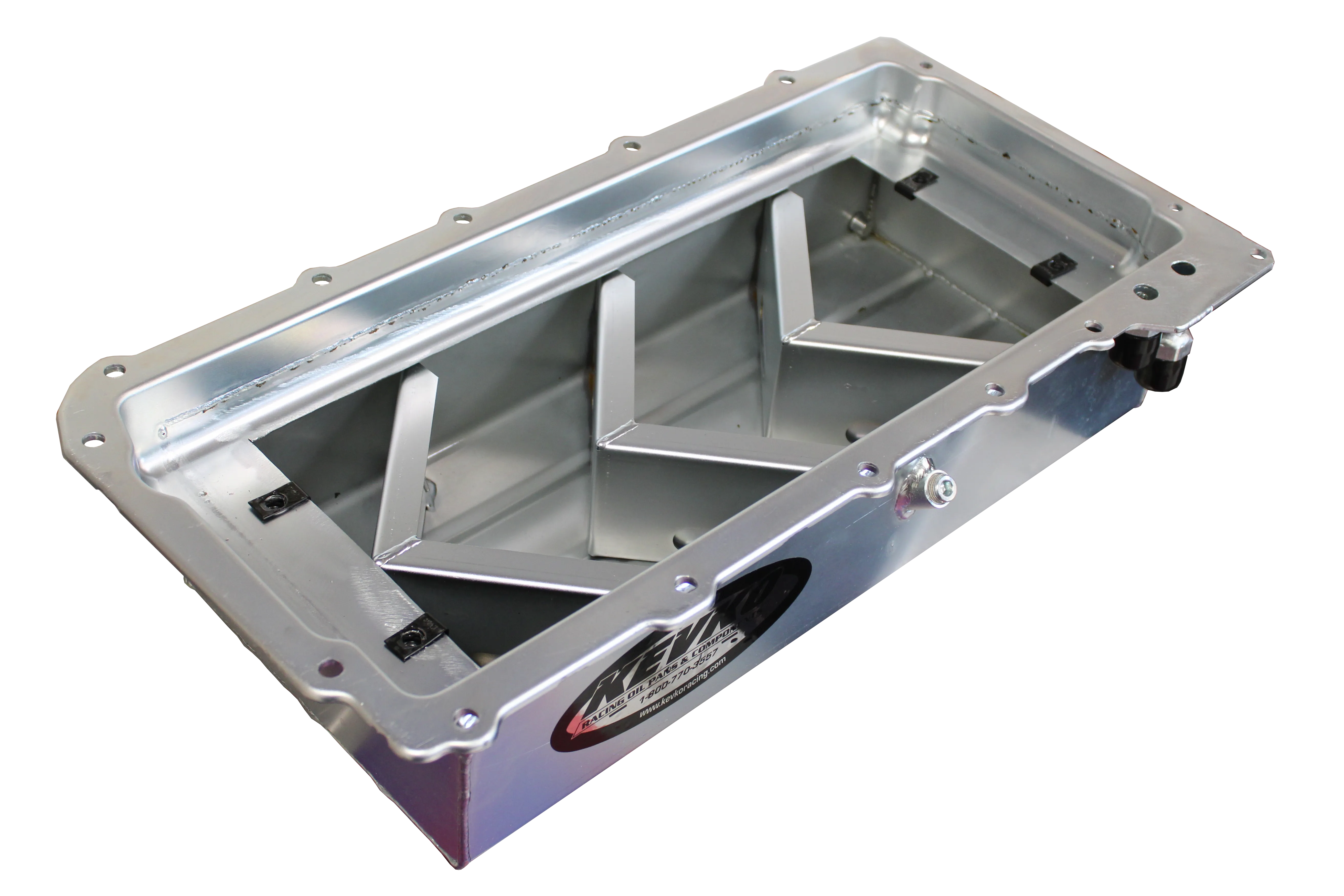

Designed for extreme use in Drag Racing or Marine applications. Features 3 V Gates each with 2 trap doors keeping your oil at the back of the sump at all times for excellent oil control when needed the most.
Bolt kit andDip-stick are included with the purchase of the Pan. You will need to purchase Kevko pickup tube: separate, as well as any other accessories listed below that you might need to complete your install.
* Front Fitting is Pressure out (to filter), Rear Fitting is the Return line.
Optional Accessories
| Part Number | Description | |
| 5" Pickup Tube With New O-ring | ||
| Remote Filter Adapter | ||
| Wix Oil Filter | ||
| 10' Foot of Parker High Temp Hose | ||
| #10 Push Lock-Straight | ||
| #10 Push Lock-45 Degree | ||
| #10 Push Lock-90 Degree | ||
| LS Victor Reinz Oil Pan Gasket | ||
| LS Motor Mounts | ||
| Magnetic Drain Plug |
